Fire Extinguishing Aerosol Generator AGS-8/2

Mã số: AGS-8/2
Giá: Liên hệ
Bảo hành: 24 Tháng

Liên hệ mua hàng

Fire Extinguishing Aerosol Generator AGS-8/2

Designed for generating gas-aerosol mixture at concentrations required to extinguish a fire.

Recommended to use fire-extinguishing systems for premises of large volumes.

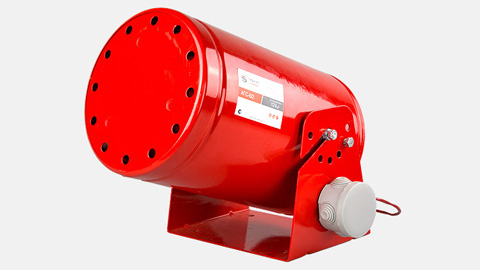

The generator consists of a cylinder with a metal case, which is located at the end of the nozzle cover. The AGS-8/2 is almost identical to the AGS-7/2,but due to labyrinth cooling system, the aerosol and air begins to mix, which significantly reduces the temperature of the gas-aerosol spray.Principle of operation:By applying an electrical or thermal pulse on node startup, a solid aerosol charge is ignited. Products of combustion pass through the nozzle on the cover of the generator, and the aerosol enters the designated area.

Manufacturer’s warranty:

The manufacturer guarantees the generator to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.

The warranty period for the generator – 18 months.

Exploitation period – 5 years.

Service period – 10 years.

Technical Information

Gallery
Tech specs
Drawings
Video
Certificates
Manual

Basic specs
Fire classes
Protected volume	125 m3
Operating time	175 ± 10 sec
Net Weight of extinguisher	19,5 kg
Net Weight of aerosol forming compound	6,7 kg
Overall dimensions
Diameter	222 mm
Height	352 mm
Starter type	VR-7.5, VRTH	VEL, VELTH
Starter electric impedance	7,5 Ohm	2,5 – 4 Ohm
Starting impulse minimum current	1A	0,4 A
Starting impulse voltage	8 – 30 V	1,5 – 24 V
Starting impulse duration	Not less than 1,5 sec	Not less than 0,1 sec
Startup delay	< 1,5 sec
Operating conditions
Temperature	± 50 °С
Humidity	up to 98 %
Acceleration at frequency range up to 100 Hz	0,5g
